Superaudio Efficient Frequency Heating Power Supply For Induction Furnace

1 Set
MOQ
$4,600.00(1 - 4 Sets) $4,140.00(5 - 5 Sets) $3,680.00(>=6 Sets)
τιμή

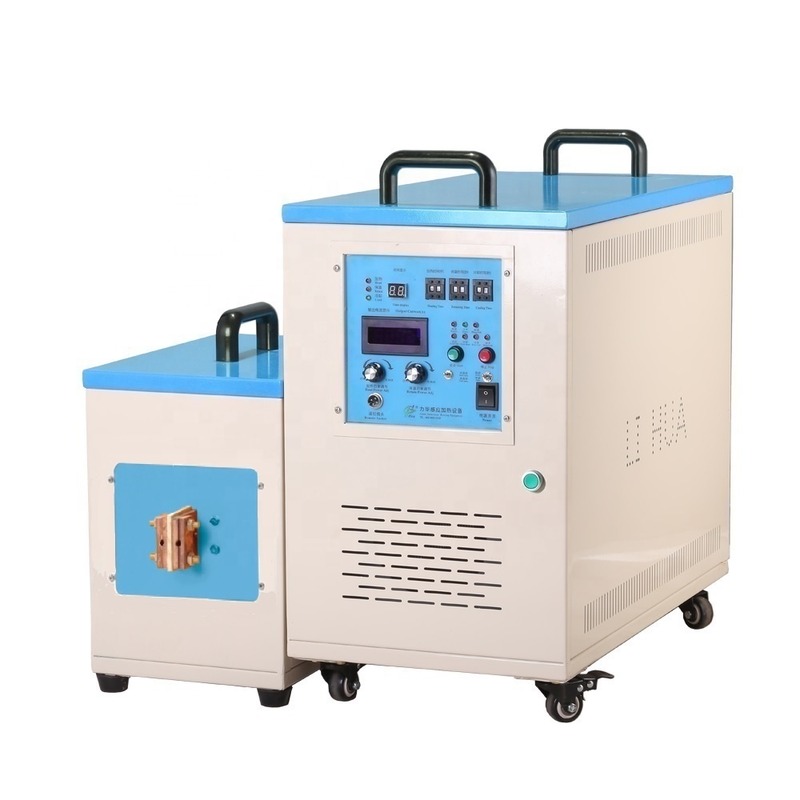

Superaudio Efficient Frequency Heating Power Supply For Induction Furnace
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Machine Type: Induction Heating Machine
Weight (KG): 96.5
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Warranty: 1 Year, 12 Months
Key Selling Points: Sustainable
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Showroom Location: None
Name: Superaudio frequency heating power supply for induction furnace
Keyword: induction heating power supply
Application: Metal heating
Working Theory: Electromagnetic Induction Heating
After-sales Service Provided: Engineers available to service machinery overseas
Frequency: 20-50Khz
Power: 60kw
Feature: Efficient
Πιστοποίηση: CE ISO
Βασικές πληροφορίες
Πιστοποίηση: CE ISO
Πληρωμής & Αποστολής Όροι
Packaging Details: 1. Plywood or wooden case 2. Adhesive wrap to prevent scratches 3. Plastic film to keep the machine together 4. Foam plate and block to prevent shake 5. Other customer's requirements
Supply Ability: 500 Set/Sets per Month
Περιγραφή προϊόντων
Product Description
LIHUA superaudio induction heater adopts the modern power electric device IGBT (insulate-gate bipolar transistor) module as the key device of inverter. Its control system is consisted of rectifying circuit, power regulating circuit, protection circuit and control circuit, advanced frequency tracking and constant angle inverter triggering and optimized IGBT-driven protection circuit. It can be widely used in metal melting, welding, heat transfer, quenching and other heat processing and treatments. The equipment has many advantages, such as high efficiency, simple and reliable circuit, convenient debugging and operation, not only improving the production process of the manufacturing enterprises, but also obviously improving the energy-saving effect.
Product Paramenters
Superaudio Frequency Induction Heating System
Model
LHY-40AB
LHY-60AB
LHY-80AB
LHY-100AB
Input voltage
100V, 110V, 115V, 120V, 127V, 200V, 220V, 230V, 231V, 240V, 380V, 480V
Output power
40kw
60kw
80kw
100kw
Frequency
20-50Khz
20-50Khz
20-50Khz
20-50Khz
Output current
1-1600A
1-2400A
1-3000A
1-3800A
Timing
1-99s
1-99s
1-99s
1-99s
Cooling water
0.08-0.16Mpa
9L/min
0.08-0.16Mpa
9L/min
0.08-0.16Mpa
9L/min
0.08-0.16Mpa
10L/min
Alarm tempreture
40°C
40°C
40°C
40°C
Generator weight
37.5kg
54kg
80kg
100kg
Transformer weight
32.5kg
42.5kg
60kg
65kg
Generator dimension (mm)
520*250*462
660*345*550
660*345*550
750*600*900
Transformer dimension (mm)
320*220*350
450*255*390
500*255*420
510*255*420
Model
LHY-120AB
LHY-160AB
LHY-200AB
LHY-250AB
Input voltage
100V, 110V, 115V, 120V, 127V, 200V, 220V, 230V, 231V, 240V, 380V, 480V
Output power
120kw
160kw
200kw
250kw
Frequency
20-50Khz
20-50Khz
20-50Khz
20-50Khz
Output current
1-4200A
1-5800A
1-6800A
1-7800A
Timing
1-99s
1-99s
1-99s
1-99s
Cooling water
0.08-0.16Mpa
12L/min
0.08-0.16Mpa
15L/min
0.08-0.16Mpa
20L/min
0.08-0.16Mpa
25L/min
Alarm tempreture
40°C
40°C
40°C
40°C
Generator weight
110kg
120kg
200kg
200kg
Transformer weight
65kg
65kg
100kg
100kg
Generator dimension (mm)
750*600*900
1000*600*900
1000*600*900
1000*600*900
Transformer dimension (mm)
670*420*500
640*360*550
640*360*550
640*360*550
Application
WELDING
QUENCHING
ANNEALING
MELTING
FORGING
SHRINK FIT
Recommend Products
Production Process
Company Profile
LIHUA company has been committed to the development, production as well as the sales of induction heating equipments since 2005. Our own garden-style factory covers an area of 10,000 square meters. The company has undergone 8 times production process optimizations and 5 times production equipment updates. LIHUA obtained the honor of national high-tech enterprise and more than 60 patent certificates. We provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is LIHUA's goal!
Customer Photos
FAQ
Q: Why use induction heating? A: ★ Improved process efficiency ★ Localized, constant and precise heating ★ Temperature control ★ Energy saving ★ Possibility of integration into production lines ★ Best quality and yield/performance ★ Pollution free, fast and secure technology ★ Improved working environment Q: How to choose a suitable induction heater? A: Induction heaters have many different modles with different power and frequency. 1. The higher power, the faster of the heating speed. so if you want to heat fast then you'd better choose a high power induction heater. 2. The higher frequency, the lower of the heating layer. So for some surface hardening, we suggest use a higher frequency heater, for some entire heating (like forging and melting) we suggest to use low frequency heater. 3. If you are not sure of which model is suitable for your work, please ask our salesman for suggestion before you place an order.
